Pink Noise Generator IT Test Equipment Compliant with IEC 60065 Clause 4.2 and 4.3 and IEC 62368-1 Annex E with Two Output Channels

Name: Pink Noise Generator IT Test Equipment Compliant with IEC 60065 Clause 42 and 43 and IEC 623681 Annex E with Two Output Channels
Brand: kingpo
Price: 1 USD

Buy cheap Pink Noise Generator IT Test Equipment Compliant with IEC 60065 Clause 4.2 and 4.3 and IEC 62368-1 Annex E with Two Output Channels product

Weight : 5kg

Dimensions : 290x270x60 mm (LxWxH)

Supply : 220 VAC 50 Hz

Standards : IEC60065

Channels : 0° or 90°

Pink noise : 1000 Hz

Brand Name : kingpo

Model Number : Model KP9280

Certification : iso9001 ce

Place of Origin : china

MOQ : 1

Price : To be quoted

Payment Terms : T/T

Supply Ability : 10 set/ month

Delivery Time : 7 work days

Packaging Details : safety carton pack or plywood box

Contact Now

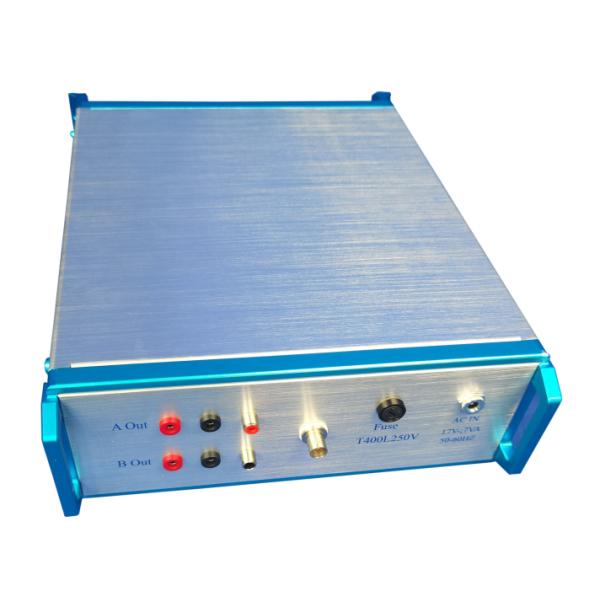

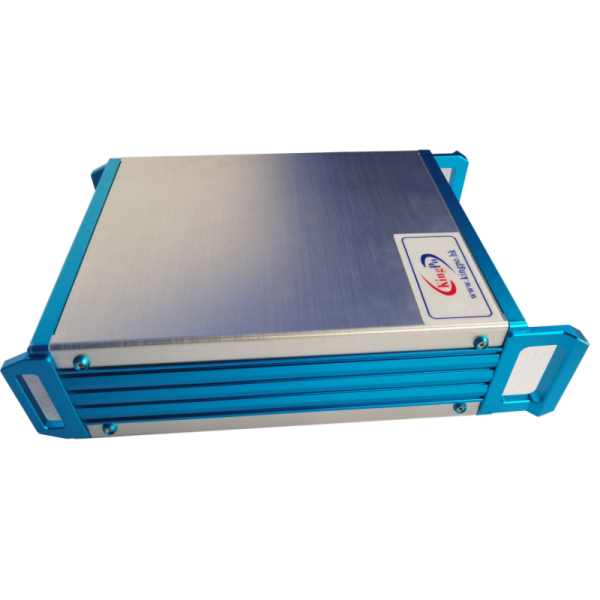

KP9280 Pink Noise Generator

This professional pink noise generator meets the requirements for pink noise testing according to IEC 60065, Clause 4.2 and 4.3, and IEC 62368-1, Annex E standards. It is specifically designed for testing all types of tone frequency amplifiers with dual channel capability and 90° phase shifting.

Technical Specifications

Pink noise or 1000 Hz sine wave output (selectable, not simultaneous)
Dual output channels for comprehensive testing
Phase shifting capability: 0° or 90°
Precise fine adjustment of output voltage
Multiple output connectors: RCA and 4 mm banana type
Includes audio test cables (RCA and 3.5 mm phono)
Output signal conforms to IEC 60065 Annex C, fig. C1 (IEC60268)

Output Voltage Specifications

Range	Sine Wave 1 kHz	Filtered Pink Noise
Low	0-100 mV/1 kohm	0-35 mV rms/1 kohm
Medium	0-1 V/1 kohm	0-350 mV rms/1 kohm
High	0-5 V/1 kohm	0-1.7 V rms/1 kohm

Download Product Manual (PDF)
